Automatic Tray Sealer TL 1150

Categories: , Tags: , , ,

Description

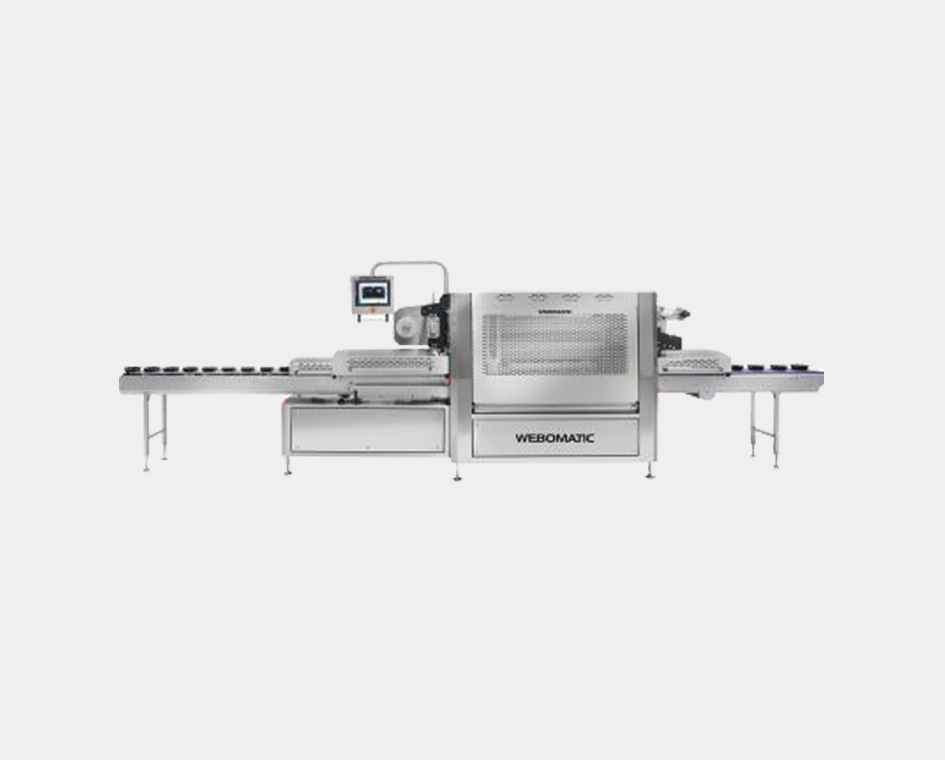

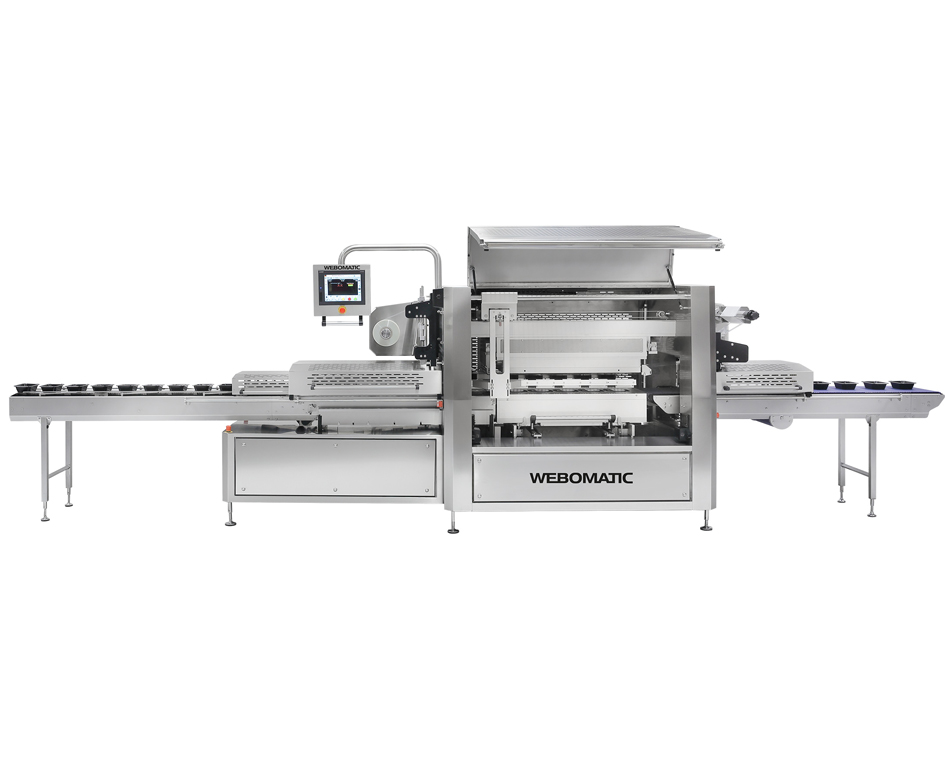

Automatic Tray Sealer TL 1150

The WEBOMATIC® Traysealer TL 1150 offers individually adaptable high-tech packaging technology that is second to none. WEBOMATIC tray sealers stand for process reliability and highest precision even with the most critical products. With the WEBOMATIC Multitools, skin or MAP packages are created with the same tool. Thanks to WEBOMATIC SCC, in the event of a malfunction, the production shift can still be completed on the same machine without having to switch to another line.

Standards:

WEBOMATIC CleanDesign® Fiber Optics In-House-Programming servo-driven gripper arms WEBOMATIC SDT

Description

Quality, craftsmanship and engineering meet the highest demands by offering a unique packaging technology which is second to none in the industrial tray capacities. With its specially extended sealing chamber, the TL 1150 represents the high industrial volume WEBOMATIC tray sealing solution.

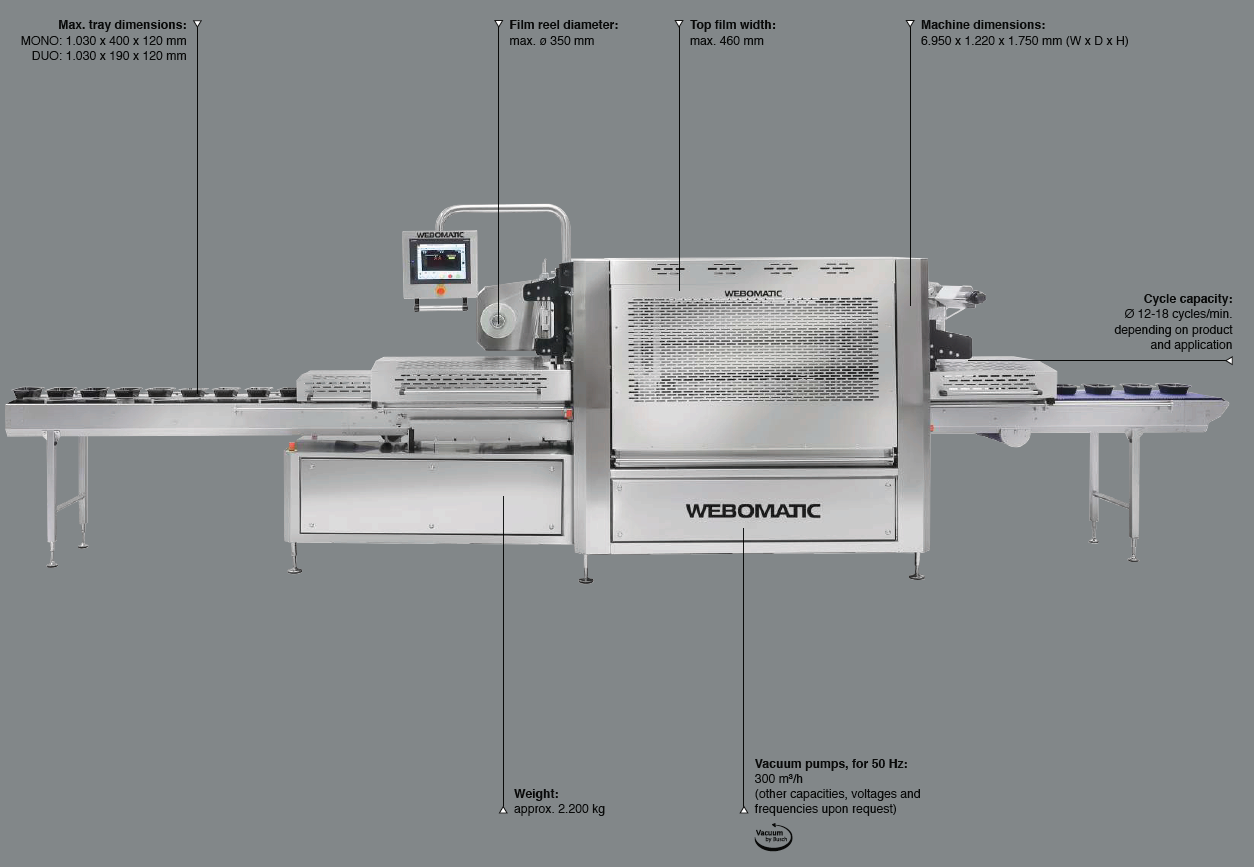

Technical Data

External machine dimensions: 6.950 x 1.220 x 1.750 mm (W x D x H)
Tray materials: e.g. PP, EPS, A-PET, C-PET, rPET, PLA, cardboard and paper-based trays, aluminium
Max. tray formats: MONO: 1.030 x 400 x 120 mm (L x W)
DUO: 1.030 x 190 x 120 mm (L x W)
Max. tray depth: 120 mm
Control unit: Mitsubishi PLC
Capacity: up to 18 cycles/min.
Vacuum pump: External
Top film width: max. 470 mm
Film transport: Servo
Packaging types: Sealing, MAP, Protrude-skin, Pseudo-skin, Peelpaq, Visiopaq
Film roll diameter: max. 350 mm
Contour cutting: Outside cut, Inside cut, Peel tap

Options

  • – WEBOMATIC Servo-drive technology (SDT)
  • – servo lift for trays
  • – Duo-Verions
  • – WEBOMATIC Twin-Use
  • – WEBOMATIC Single Cavity Control (SCC)
  • – skin packaging variations
  • – die set trolley
  • – die set rack
  • – photo cell / print mark control for printed top film
  • – user identification pins
  • – communication module for remote diagnosis and maintenance
  • – separator
  • – gas mixing unit
  • – preheating
  • – other peripheral devices upon request, e.g. tray denester, dosing system, labeling systems, lid application, etc.
