Description
| Wheel diameter | 300 | mm |
| Bandsaw blade | 2490 x 16 | mm |
| Blade speed | 22 | m/s |
| Pass of cutting height | 306 | mm |
| Pass of cutting side | 282 | mm |
| Cutting stroke | 296 | mm |
| Section of portioning | 5-270 | mm |
| Table dimensions | BTH 590 x 765 x 910 | mm |
| Sliding table | 315 - 351 (S) | mm |
| Machine dimensions | WDH 749 x 815 x 1762 | mm |
| Motor tension (3Ph) | 230 / 400 | V |
| Motor capacity / Protection system IP54 (Optional) | 1,5 | kW |
| Nominal current at 230 V 400 V (Optional) | 5,9 / 3,4 | A |
| Conductor size | 1,5 | mm2 |
| Fusing at 230 V / 400 V (A lazy) | 16 / 16 | A |
| Noise level | 72 | db (A) |
| Weight net | 250 - 270 kg | kg |

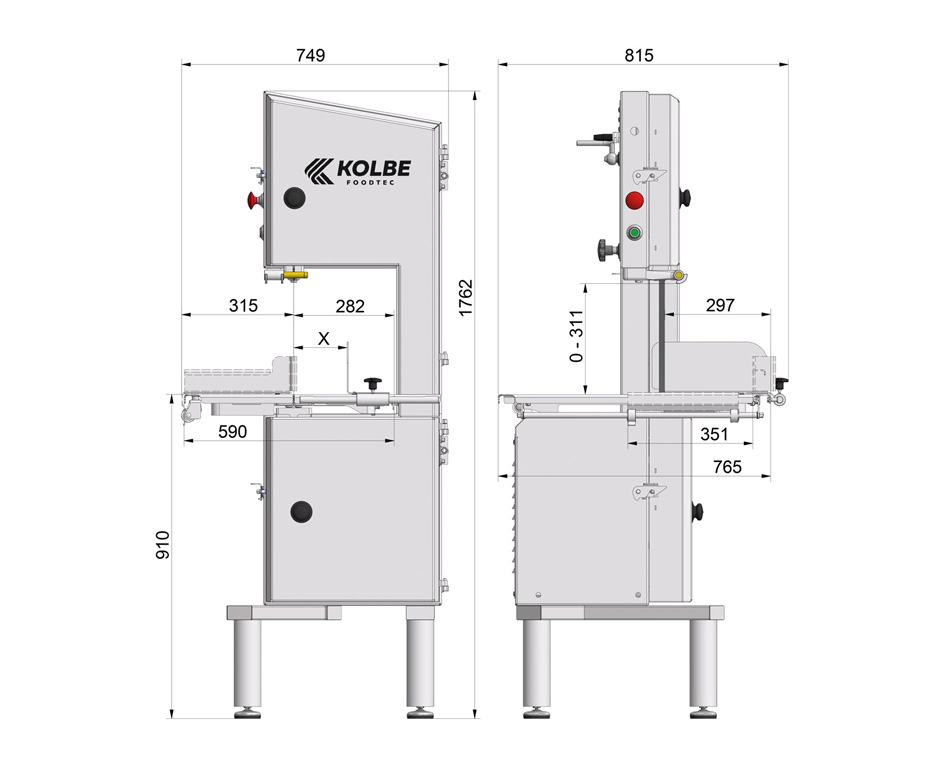

Description & Engineering Detail Drawing

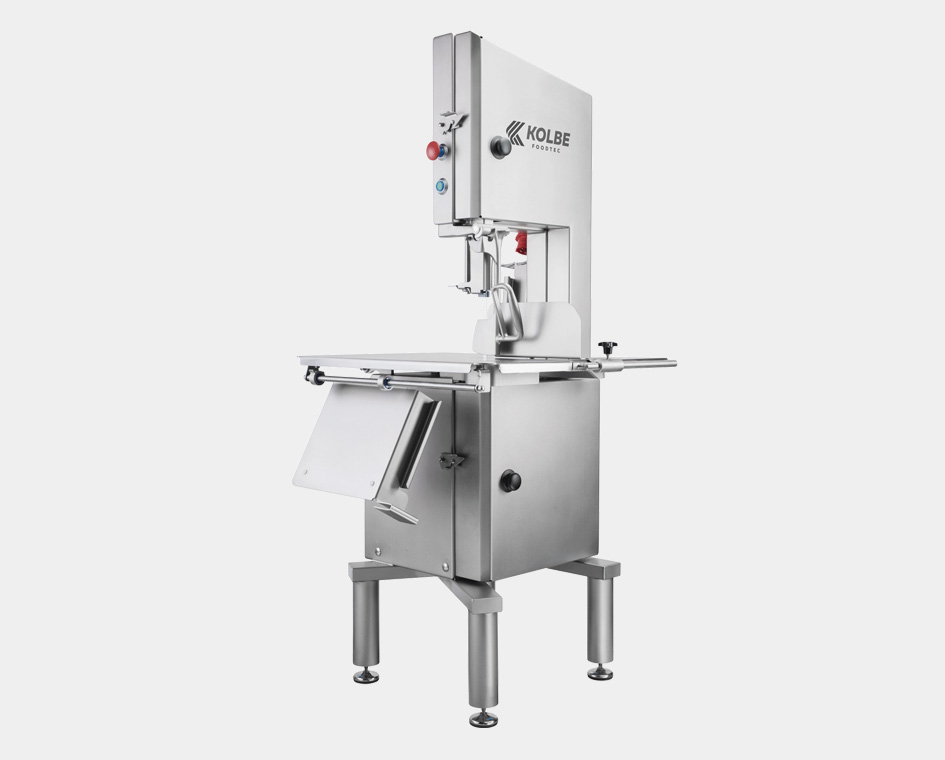

The economy model of our range of professional bandsaws. The higher blade speed and the topnotch cutting performance allow for the K330 to break down fresh and frozen hollow bones and meat parts.
For fine portioning of bigger quantities the K330S is equipped with a sliding table, which can be folded down sideways for dissections.
